Super Air Heater Digital Temperature Control Unit DAC-8D

Part Names

Front Panel

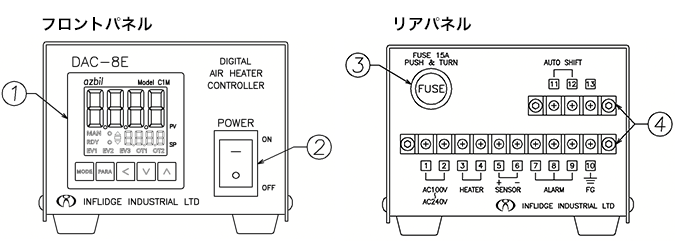

Front Panel Part Names
1 No.1 Display Area 5 Setting Key
2 LEDs for AT and ST Use 6 Para Key
3 No.2 Display Area 7 Mode Key
4 Mode Indicator 8 Power Switch
Rear Panel

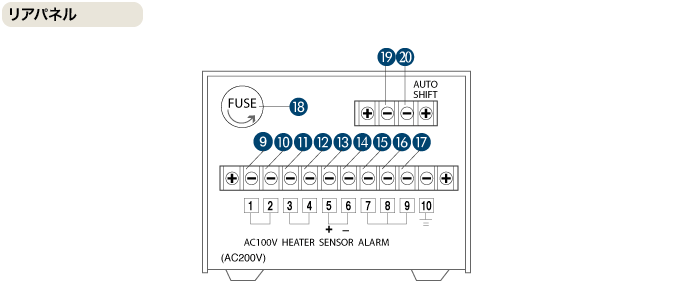

Rear Panel Part Names
 9 1) Power Input Terminal 15 7) Event Output Terminal (COM)
10 2) Power Input Terminal 16 8) Event Output Terminal (EV1)
11 3) Heater Output Terminal 17 9) Event Output Terminal (EV2)
12 4) Heater Output Terminal 18 Fuse
13 5) Sensor (Thermocouple) Input Terminal (+) 19 11) External Input Terminal (RSW1)
14 6) Sensor (Thermocouple) Input Terminal (-) 20 12) External Input Terminal (COM)

Specifications

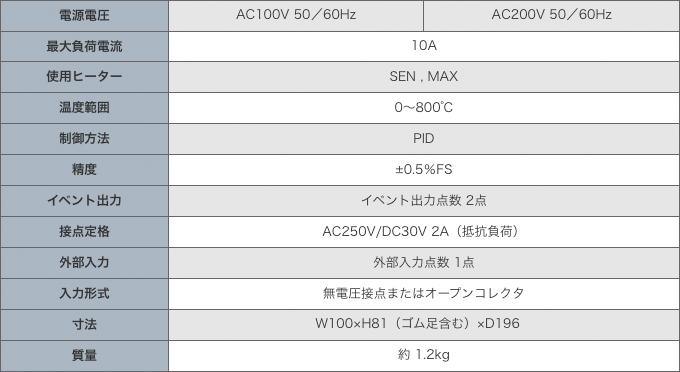

Specifications
Voltage AC100V 50 / 60Hz AC200V 50 / 60Hz
Heater in Use SEN , MAX
Temperature Range 0 to 800°C
Control System PID
Accuracy ±0.5%FS
Event Output Event output points: 2
Rated Output AC250V 3A, DC30V 1A
External Input External input points: 1
Input Method Non-voltage contact or open collector
Dimensions W100×H81 (including rubber feet) ×D196
Mass 1.2kg

* Specifications are subject to alteration for improvement purposes without prior notice.
