Halogen Heater BC Power Pack Series for Halogen Heaters

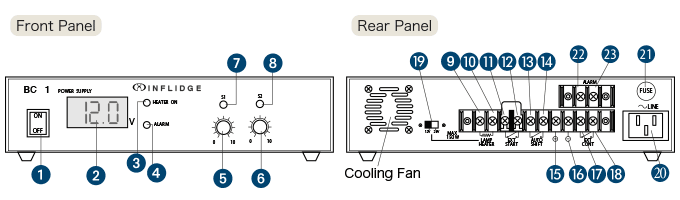

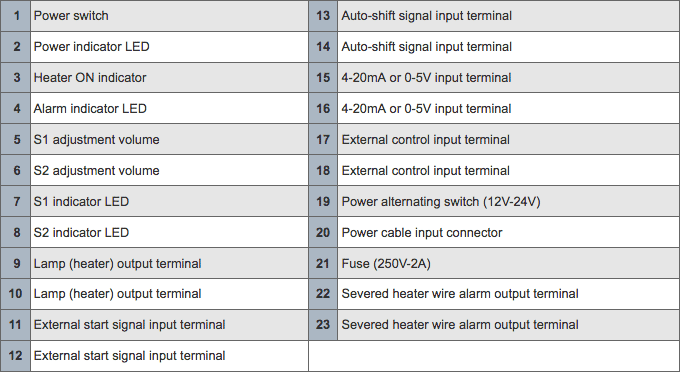

Part Names (BC-1)
| 1 |
Power switch |
13 |
Auto-shift signal input terminal |
| 2 |
Power indicator LED |
14 |
Auto-shift signal input terminal |
| 3 |
Heater ON indicator |
15 |
4-20mA or 0-5V input terminal |
| 4 |
Alarm indicator LED |
16 |
4-20mA or 0-5V input terminal |
| 5 |
S1 adjustment volume |
17 |
External control input terminal |
| 6 |
S2 adjustment volume |
18 |
External control input terminal |
| 7 |
S1 indicator LED |
19 |
Power alternating switch (12V-24V) |
| 8 |
S2 indicator LED |
20 |
Power cable input connector |
| 9 |
Lamp (heater) output terminal |
21 |
Fuse (250V-2A) |
| 10 |
Lamp (heater) output terminal |
22 |
Severed heater wire alarm output terminal |
| 11 |
External start signal input terminal |
23 |
Severed heater wire alarm output terminal |
| 12 |
External start signal input terminal |
|

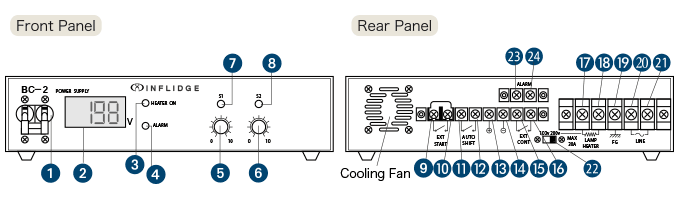

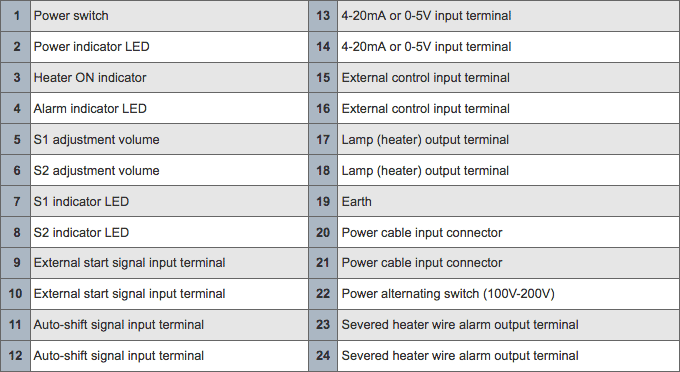

Part Names (BC-2)
| 1 |
Power switch |
13 |
4-20mA or 0-5V input terminal |
| 2 |
Power indicator LED |
14 |
4-20mA or 0-5V input terminal |
| 3 |
Heater ON indicator |
15 |
External control input terminal |
| 4 |
Alarm indicator LED |
16 |
External control input terminal |
| 5 |
S1 adjustment volume |
17 |
Lamp (heater) output terminal |
| 6 |
S2 adjustment volume |
18 |
Lamp (heater) output terminal |
| 7 |
S1 indicator LED |
19 |
Earth |
| 8 |
S2 indicator LED |
20 |
Power cable input connector |
| 9 |
External start signal input terminal |
21 |
Power cable input connector |
| 10 |
External start signal input terminal |
22 |
Power alternating switch (100V-200V) |
| 11 |
Auto-shift signal input terminal |
23 |
Severed heater wire alarm output terminal |
| 12 |
Auto-shift signal input terminal |
24 |
Severed heater wire alarm output terminal |

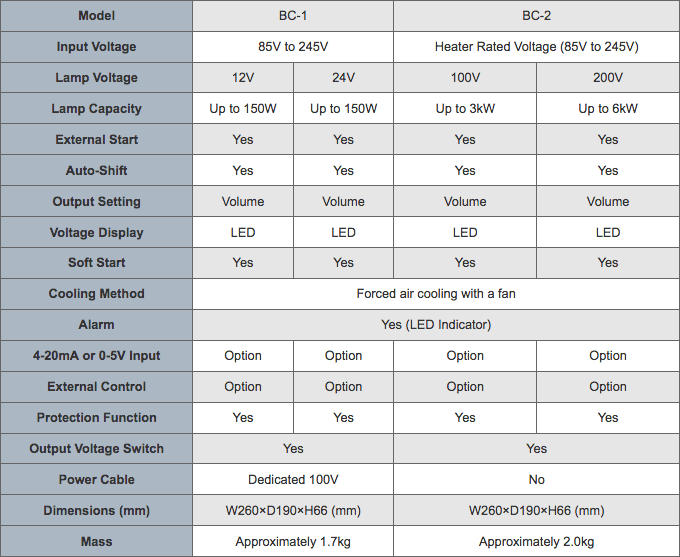

Specifications
| Model |
BC-1 |
BC-2 |
| Input Voltage |
85V to 245V |
Heater Rated Voltage (85V to 245V) |
| Lamp Voltage |
12V |
24V |
100V |
200V |
| Lamp Capacity |
Up to 150W |
Up to 150W |
Up to 3kW |
Up to 6kW |
| External Start |
Yes |
Yes |
Yes |
Yes |
| Auto-Shift |
Yes |
Yes |
Yes |
Yes |
| Output Setting |
Volume |
Volume |
Volume |
Volume |
| Voltage Display |
LED |
LED |
LED |
LED |
| Soft Start |
Yes |
Yes |
Yes |
Yes |
| Cooling Method |
Forced air cooling with a fan |
| Alarm |
Yes (LED Indicator) |
| 4-20mA or 0-5V Input |
Option |
Option |
Option |
Option |
| External Control |
Option |
Option |
Option |
Option |
| Protection Function |
Yes |
Yes |
Yes |
Yes |
| Output Voltage Switch |
Yes |
Yes |
| Power Cable |
Dedicated 100V |
No |
| Dimensions (mm) |
W260×D190×H66 (mm) |
W260×D190×H66 (mm) |
| Mass |
Approximately 1.7kg |
Approximately 2.0kg |
* Specifications are subject to alteration for improvement purposes without prior notice.
The power cable is only supplied with the 100V BC-1 model.
